Hi DNA Enterprise,

I used the sample KPI Donut chart in your site and I want to recreate that one. But unfortunately the
Donut Chart.pbix (2.4 MB)
visuals that Im expecting is diffrent in what i have now

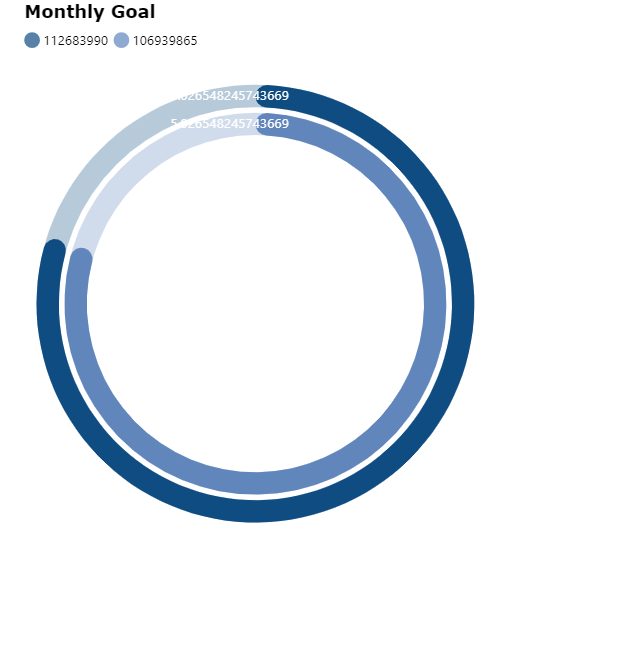

image633×656 29.6 KB

So for the legend I want to habe a total sales and total sales ly as legend not the actual value
and for the label in the chart i want it to be in percent…

2

this looks like a deneb visual, is that correct?

If it is did you check the deneb showcase?

Latest Deneb Showcase topics - Enterprise DNA Forum

I believe there is something there.
thanks
Keith

1 Like
3

Hi @sgrady:

1 - Legend:
To use the value rather than the field name, change the text encoding to use “value” instead of “field”.

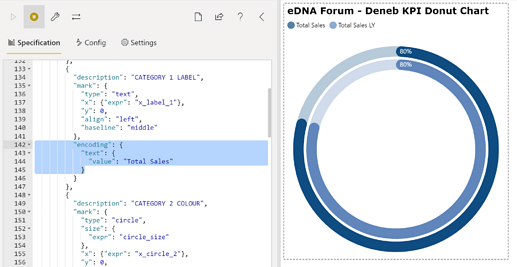

eDNA Forum - Deneb KPI Donut Chart Formatting - 1
eDNA Forum - Deneb KPI Donut Chart Formatting - 11970×1022 205 KB

2 - Ring Labels:
To show your labels as percentages, you’ll need to adjust the field and formatting.

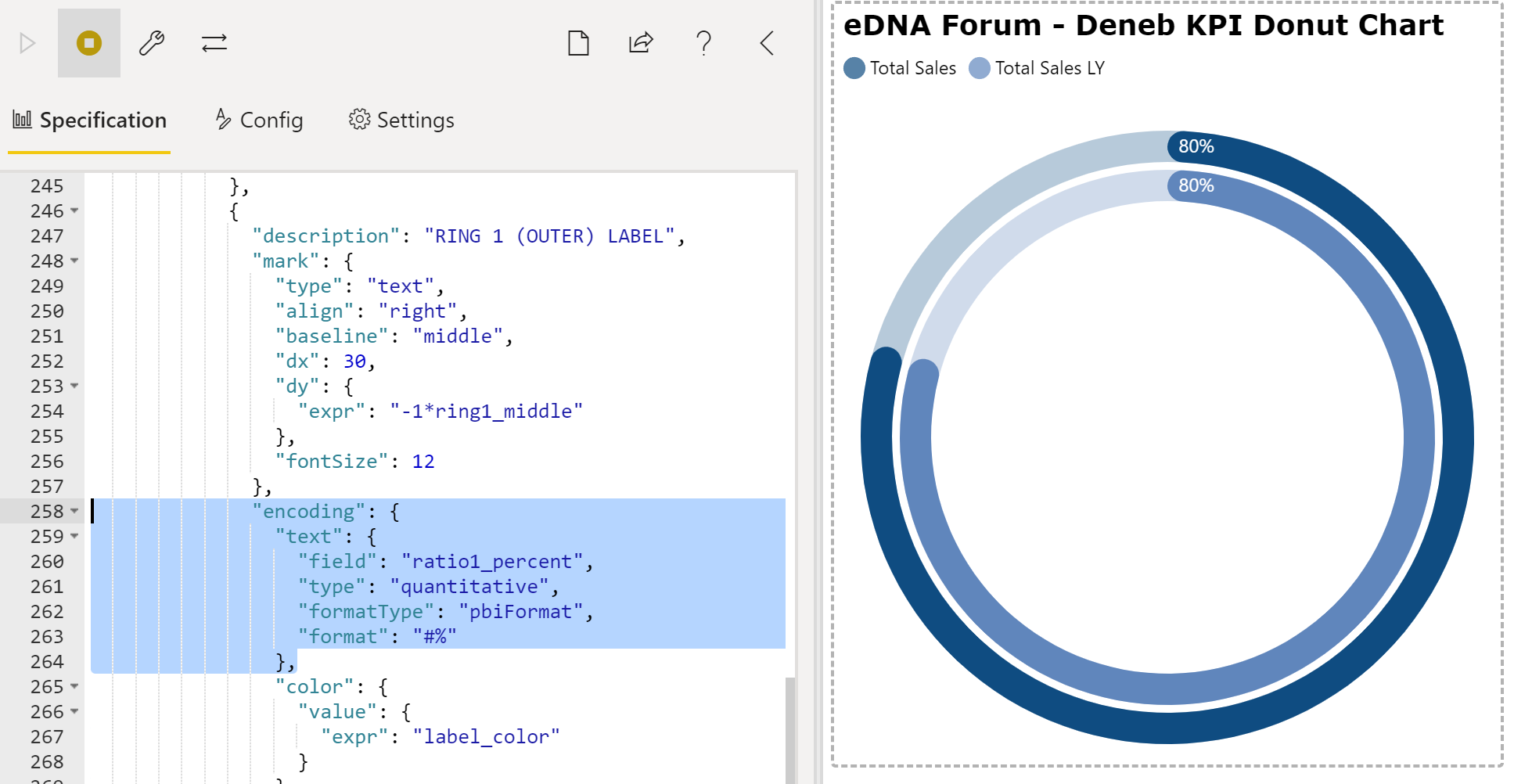

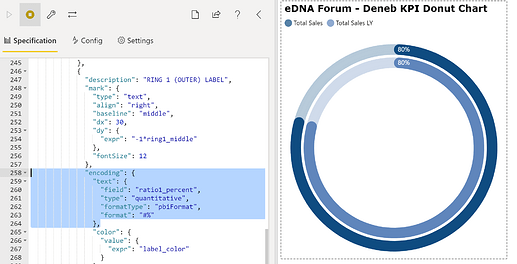

eDNA Forum - Deneb KPI Donut Chart Formatting - 2
eDNA Forum - Deneb KPI Donut Chart Formatting - 21958×1002 154 KB

Hope this helps.
Greg
eDNA Forum - Deneb KPI Donut Chart.pbix (2.4 MB)

1 Like
4

Hi Greg,

Thanks for the help! Really appreciate it!
