Deneb Example - Facetted Histograms

Deneb/Vega-Lite can be used to create facetted histograms showing not only the “part” (category) but also the “whole” (total).

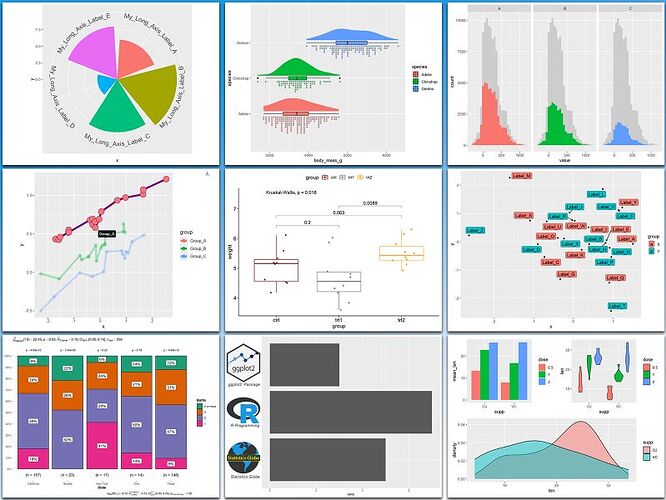

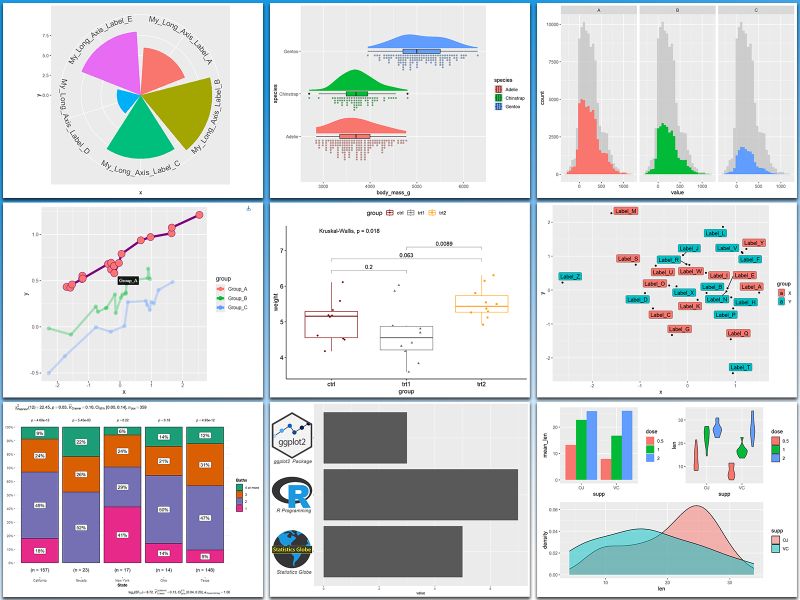

I first saw an example of this a few months ago in a post by Joachim Schork showcasing some ggplot2 extensions.

I wanted to explore the presentation of binned data in Deneb/Vega-Lite using a small helper table (30 rows; 3 categories x 10 bins), a small dataset (344 rows; Vega/Vega-Lite penguins sample), and simple DAX (2 measures).

Species Rows =
VAR _Species = SELECTEDVALUE( 'Species Bins'[Species] )
VAR _Min = SELECTEDVALUE( 'Species Bins'[Bin Min] )
VAR _Max = SELECTEDVALUE( 'Species Bins'[Bin Max] )
VAR _Result = CALCULATE(
    COUNTROWS( Penguins ),
    FILTER(
        Penguins,
        Penguins[Species] = _Species &&
        Penguins[Body Mass (g)] >= _Min &&
        Penguins[Body Mass (g)] <= _Max
    )
) + 0

RETURN
_Result

Total Rows =
VAR _Min = SELECTEDVALUE( 'Species Bins'[Bin Min] )
VAR _Max = SELECTEDVALUE( 'Species Bins'[Bin Max] )
VAR _Result = CALCULATE(
    COUNTROWS( Penguins ),
    FILTER(
        Penguins,
        Penguins[Body Mass (g)] >= _Min &&
        Penguins[Body Mass (g)] <= _Max
    )
) + 0

RETURN
_Result

The example herein presents histograms of penguin count by body mass facetted by species above an overall total penguin count; a custom tooltip shows basic and calculated information.

This example illustrates a number of Deneb/Vega-Lite features, including:
0 - General:

  • a “title” block with subtitle
  • a “facet” block to produce separate species visuals
  • a “spec” block containing a “layer” block to display the species count above the total count

1 - Total:

  • a “bar” mark in medium grey colour
  • “x” axis encoding using the single-line binning provided by Vega-Lite

2 - Species:

  • a nested “transform” block with:
    • 2x “calculate” transforms to compose the bin range and to determine the species/total value
  • a “bar” mark with:
    • 75% opacity
    • “x” axis encoding using the single-line binning provided by Vega-Lite
    • “x” axis scaling to produce 500g bins and allow empty bins on each end
    • conditional colour by species
    • a custom tooltip with species, bin range, species rows, total rows, and species/total percent
Deneb/Vega-Lite JSON Code:
{
  "title": {
    "anchor": "start",
    "align": "left",
    "offset": 20,
    "text": "Power BI Facetted Historgrams (Category vs. Total) using Deneb",
    "font": "Segoe UI",
    "fontSize": 32,
    "fontWeight": "bold",
    "fontStyle": "normal",
    "subtitle": "Data Source: Vega/Vega-Lite sample data - Penguins dataset",
    "subtitleFont": "Segoe UI",
    "subtitleFontSize": 18,
    "subtitleFontWeight": "normal",
    "subtitleFontStyle": "italic"
  },
  "data": {
    "name": "dataset"
  },
  "facet": {
    "column": {
      "field": "Species",
      "header": {
        "labelFontSize": 24,
        "titleFontSize": 18
      }
    }
  },
  "spec": {
    "width": 350,
    "height": 580,
    "layer": [
      {
        "name": "TOTAL",
        "mark": {
          "type": "bar",
          "color": "#C9C9C9"
        },
        "encoding": {
          "x": {
            "field": "Bin Min",
            "bin": {
              "binned": true,
              "step": 500
            }
          },
          "x2": {
            "field": "Bin Max"
          },
          "y": {
            "field": "Total Rows",
            "type": "quantitative"
          }
        }
      },
      {
        "name": "SPECIES",
        "transform": [
          {
            "calculate": "datum['Bin Min'] + '-' + datum['Bin Max']",
            "as": "_bin_range"
          },
          {
            "calculate": "datum['Species Rows'] / datum['Total Rows']",
            "as": "_species_percent"
          }
        ],
        "mark": {
          "type": "bar",
          "opacity": 0.75,
          "tooltip": true
        },
        "encoding": {
          "x": {
            "field": "Bin Min",
            "bin": {
              "binned": true,
              "step": 500
            },
            "axis": {
              "title": "Body Mass (g)",
              "labelFontSize": 12,
              "titleFontSize": 14
            },
            "scale": {
              "domain": [
                2000,
                7000
              ]
            }
          },
          "x2": {
            "field": "Bin Max"
          },
          "y": {
            "field": "Species Rows",
            "type": "quantitative",
            "axis": {
              "title": "Count",
              "labelFontSize": 12,
              "titleFontSize": 14
            }
          },
          "color": {
            "field": "Species",
            "type": "nominal",
            "scale": {
              "range": [
                "#0F4C81", // blue
                "#1E5E08", // green
                "#B71021" // red
              ]
            },
            "legend": null
          },
          "tooltip": [
            {
              "field": "Species",
              "type": "nominal"
            },
            {
              "field": "_bin_range",
              "type": "nominal",
              "title": "Bin"
            },
            {
              "field": "Species Rows",
              "type": "quantitative",
              "title": "Species Rows"
            },
            {
              "field": "Total Rows",
              "type": "quantitative",
              "title": "Total Rows"
            },
            {
              "field": "_species_percent",
              "type": "quantitative",
              "title": "Percent of Total",
              "format": "0.0%"
            }
          ]
        }
      }
    ]
  }
}

Also included is the development sample PBIX using, as noted above, Vega/Vega-Lite sample data.

The intent of this example was not to provide a finished visual, but rather to explore the use of the Deneb custom visual and the Vega-Lite language within Power BI and to serve as a starting point for further development.

This example is provided as-is for information purposes only, and its use is solely at the discretion of the end user; no responsibility is assumed by the author.

Greg
Deneb Example - Facetted Histograms - V5.pbix (5.2 MB)
