I am trying to setup conditional formatting for the Advance Card custom visual from MSFT App Source. This visual allows for (I think) up to 6 conditions to be set for formatting the card. I’d like the background to change based on the measure’s range of data points:
< 65% - - Green
= 65% up to 85% - - Yellow
85% up to 100% - - Orange
100% > - - Red
I am not sure this is possible with this visual. It works well if I set just the first two conditions as < 65 and > = 65, but once I try to add more conditions then what should be Orange and Red just stay as Yellow. There is no “in-between” condition, only these 5 are available: <, <=, =, >, >=.
Please advise if I am not using this visual correctly, or if there is a better way to achieve this with a different solution such as deneb or charticulator.
Hi @s_schwantes … you can do whatever you want with Deneb; one does, though, need specific requirements. If you can provide a small example dataset in a PBIX file with the visuals that are “incorrect” and a screenshot or Excel mockup of exactly what you are looking for in your cards, the forum members will have more information for their review.
Greg

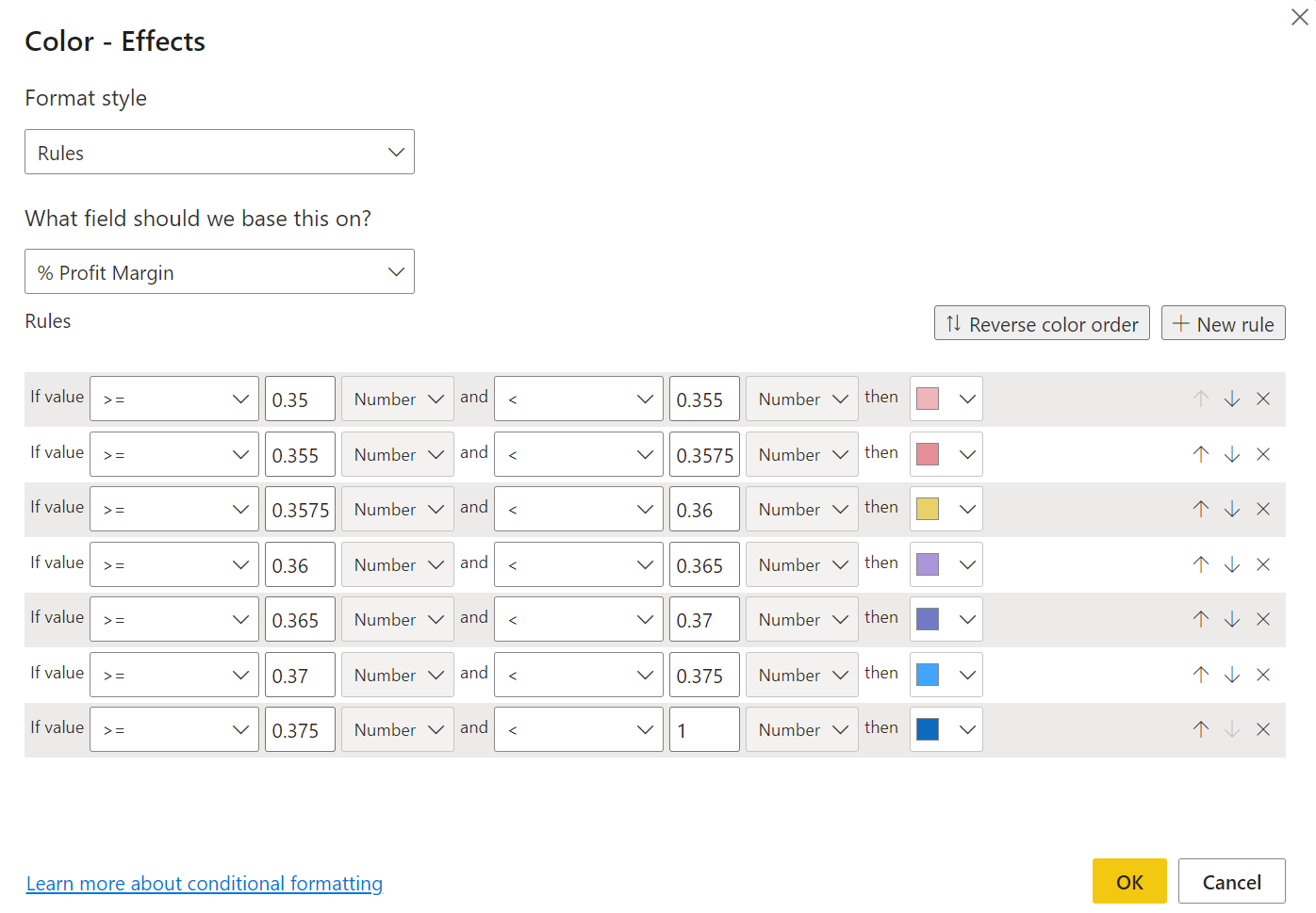

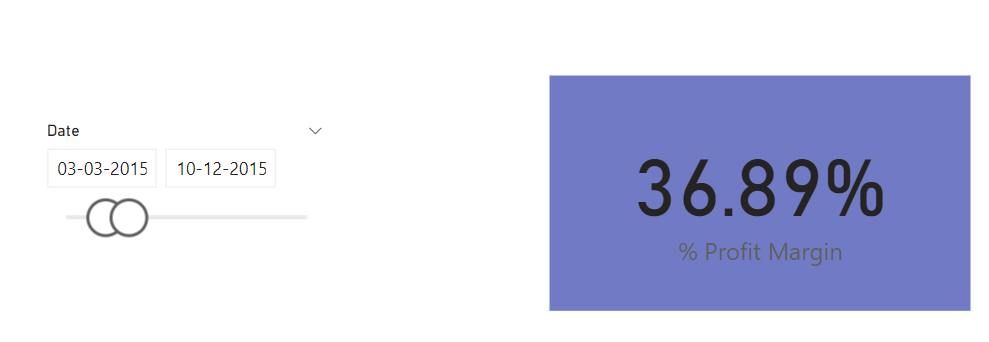

Harsh,
Thanks very much for pointing out this native solution. I didn’t need the custom visual after all. BTW the custom visual name is “Advance Card” and can be found on app source here:
